Steel above-ground Storm Shelters
Panelized design for ease of installation and relocation
when you move to a new home.
We have utilized the latest Computer Aided Design programs and over 40
years of engineering experience to design the strongest and most advanced
above-ground steel Storm Shelter on the market today.
Our units meet or exceed FEMA 320/361 standards and NSSA/ICC-500 standards, Meets or exceeds Texas Tech Wind Research Center specifications.

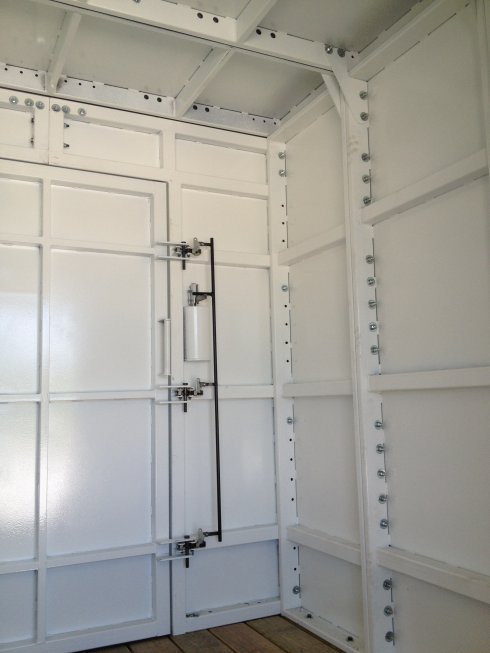

Skin is A572-grade 65 high-strength low-alloy steel 3/16’’ plate. Wall studs and ceiling beams are made from 1”X 3” .120 1018 steel tube which are structurally conjoined with grade 5 fasteners during installation (making an effective 2x3x.250 beam). Wall lateral braces are 2”X2” .120 wall 1018 steel tube.
Intrusion proof roof beam/floor cross-flow air ventilation and pressure-stabilization system
16 5/8” anchor bolts set in 2-part epoxy (4’x6’ unit)
Panelized design for ease of installation and relocation when you move
to a new home.

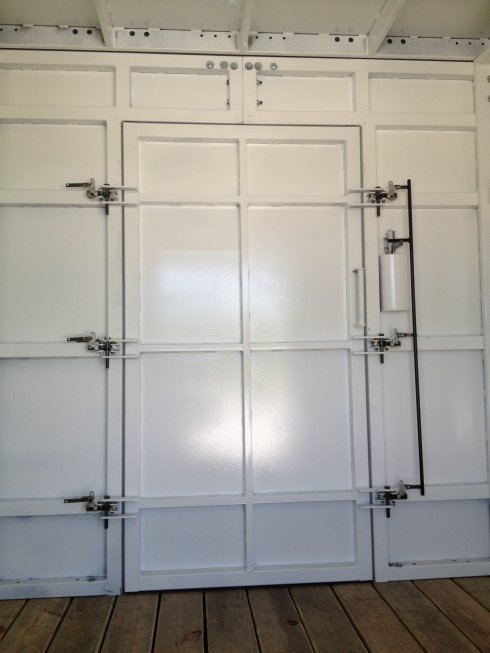

Center standard (On 6 foot) and left or right side inward-opening ADA
Compliant 36’’ door.
All of our doors are ADA compliant and are handicap accessible.
